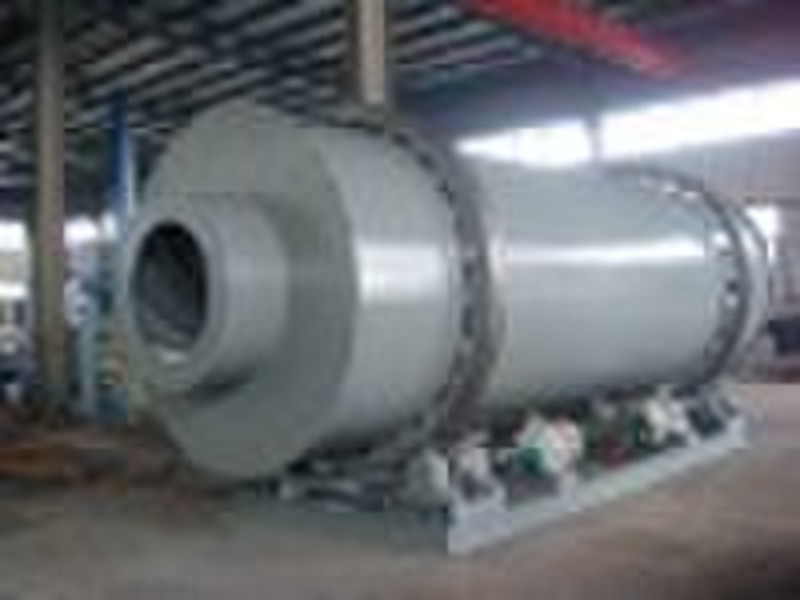

SLSH Three-cylinder Rotary Dryer

Brief Introduction: SLSH three-cylinder dryer is mainly used for drying a certain humidity and size of granular materials, such as yellow sand used in dry powder and mortar, various specifications of sand used in a foundry industry, blast furnace slag used in building materials and cement industry, clay in a small size, small materials, which have no chemical changes, resists high temperature and are with flyblown dust, used in chemical industry. In accordance with the request of materials and water in different industries, water in materials which are dried can be below 1-0.5%. The materials which enter into dryers should not stick on cylinder wall and feeding plates. The gas temperature which is into the dryer should be less than 750°C. If it requests being dried in higher temperature, the inner cylinder at the entrance of the dryer can be made of steel plate. Technical Specification: Model2.6(D.)*7.03.2(D.)*803.6(D.)*8.03.8(D.)*90Diameter of outer cylinderm2.63.23.63.8Length of outer cylinderm7.08.08.0 9.0 Cylinder volumem337.564.3181.39102.12Cylinder speedrpm4 10Initial moisture of slag%10 12Final moisture of slag%1Initial moisture of yellow sand%8-10Final moisture of yellow sand%0.5-1Max. inlet temperature°C700-750CapacitySlag(t/h)22 2842 4652 6056 65Yellow sand(t/h)26 3250 5558 6560 70Motor/Y160-M-4Y160-M-4Y160-M-4Y160-M-4Powerkw5.5111518.5Reductor XWD6-23XWD8-23Reductor ratio129
